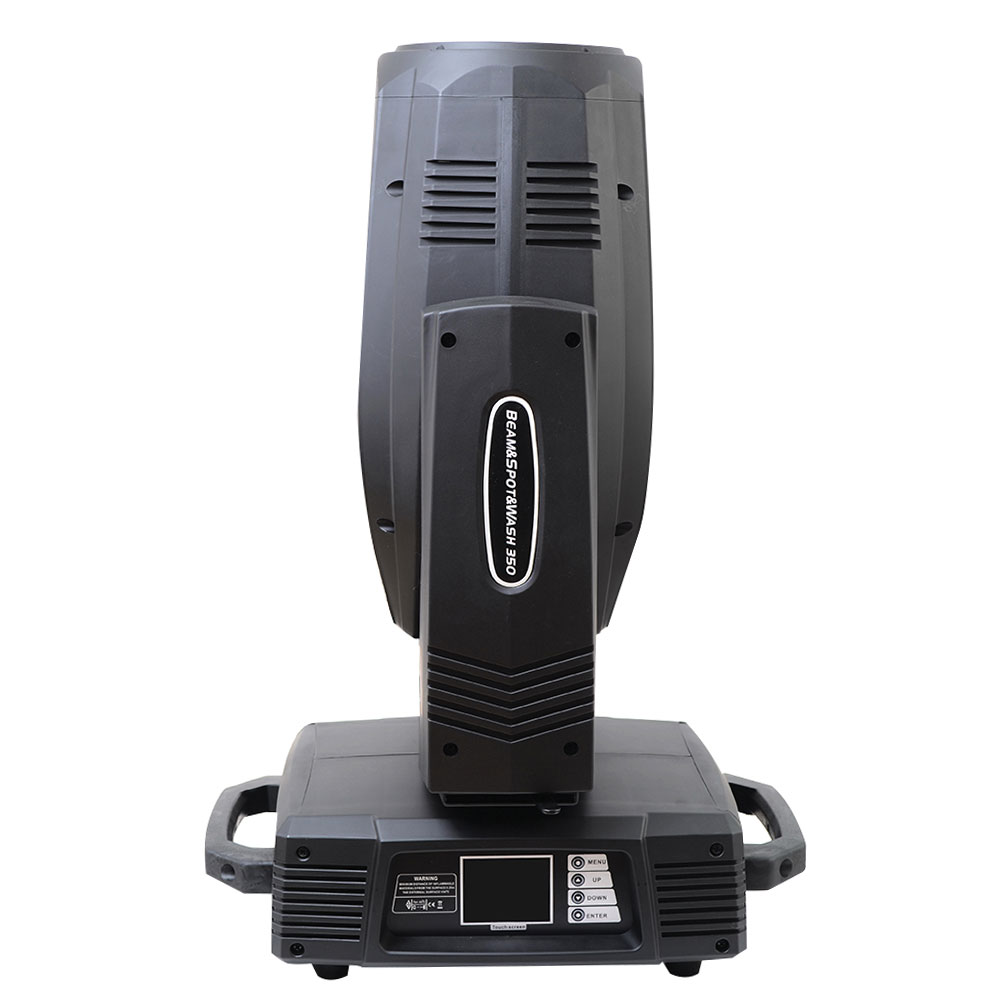

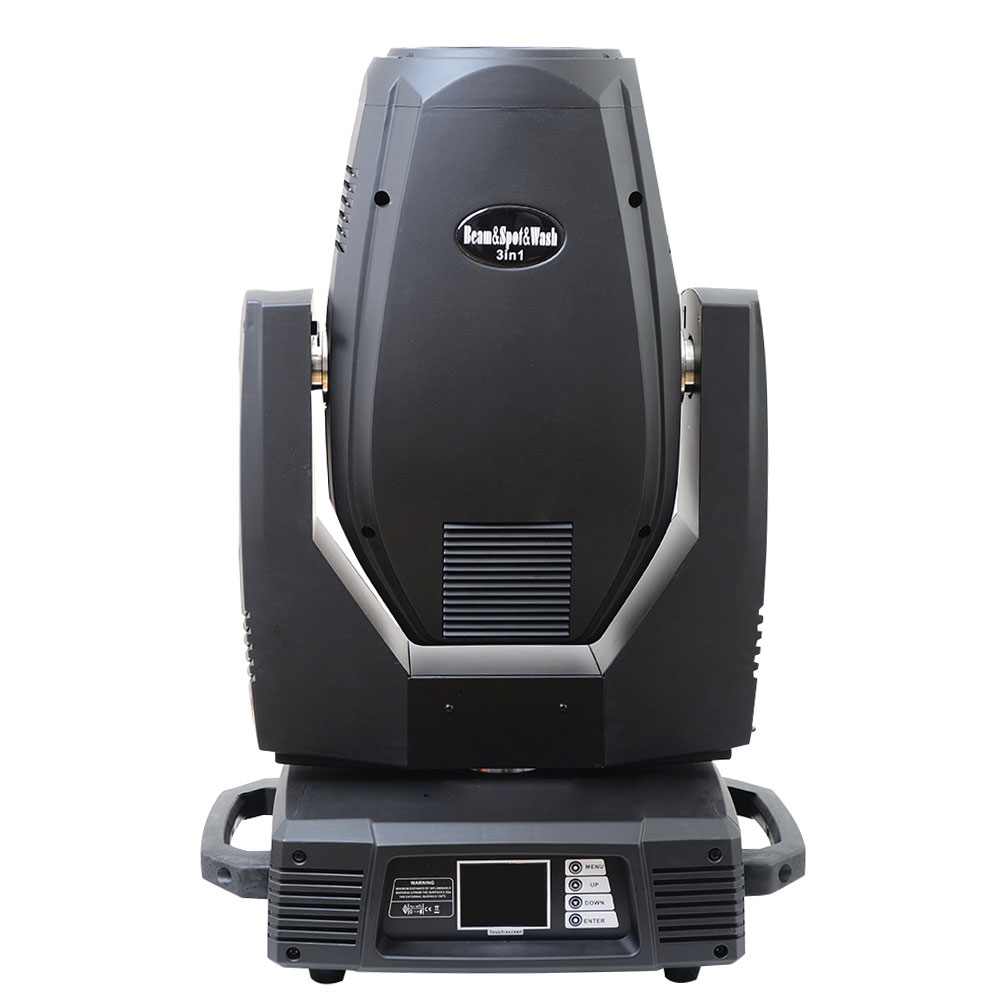

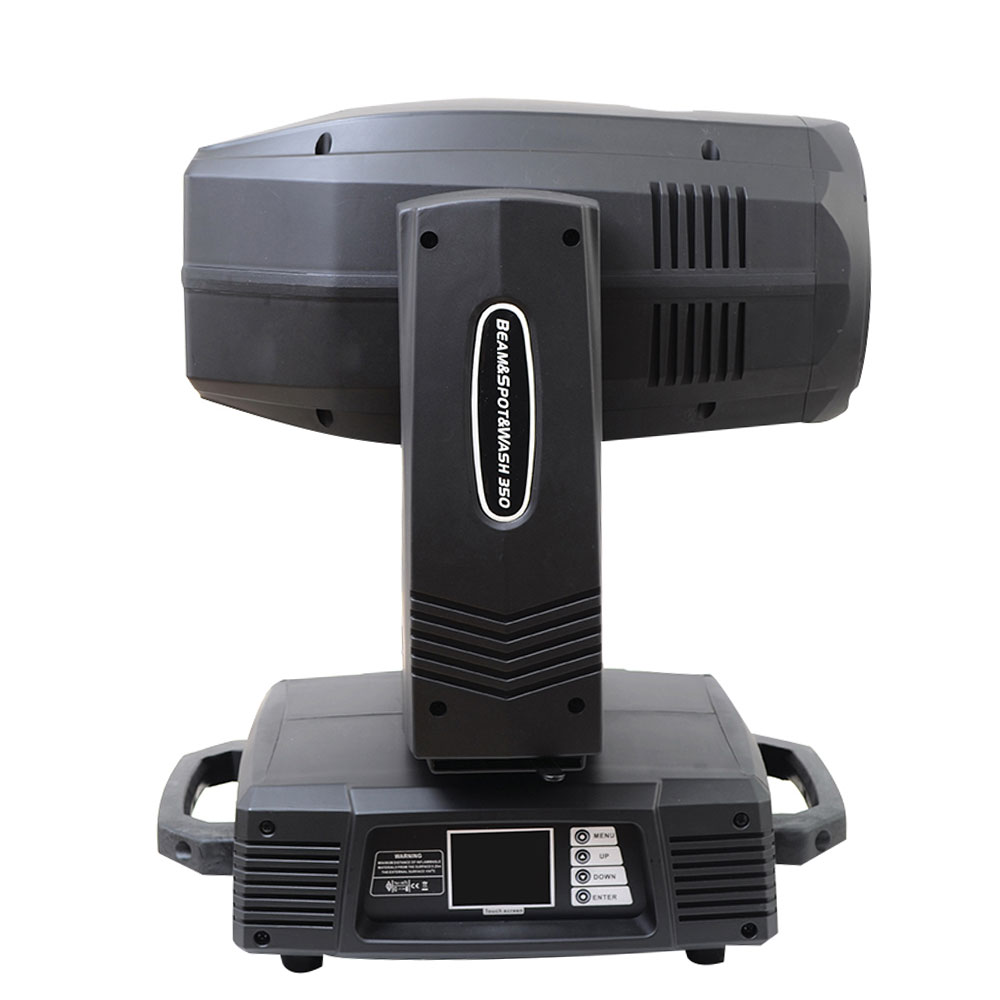

350W 3in1 MOVING HEAD  PATTERN LIGHT Type B
-350W 3in1 MOVING HEAD  PATTERN LIGHT Type B
Parameter
Demonstration
Video
Input Voltage: AC90-240V  50-60Hz
Lamp: 350W Philips or YODN lamp
Control Signal: DMX 512, Master-slave and
sound activated or Stand alone
Control Channel: 18/24DMX Channels
Power Consumption:450/500W
High Brightness 330W/350W Lamp
High precision Optics Glass lens , 540°
pan and 270° tilt movement
16 bit smooth and precise resolution for
PAN/TILT movement
Scan position memory, auto reposition after
unexpected movement
Unprecedented brightness-comparable to
wattages many times higher
1 Color Wheel with 14 colors Plus Open,
half-tone effect, linear color conversion,
bi-directionally rotatable at variable speeds
and rainboweffect.
1 Static Gobo Wheel with 16 interchangeable
gobos + White, and bi-directionally rotatable
at variable speeds, gobo shaking at variablespeeds
1 Rotating Gobo wheel with 12 interchangeable
gobos plus open, Indexable and bi-directionally
rotatable at variable speeds, gobo shaking at
variable speeds
2 independent rotating prisms, 8-facet prism and
24-Facet Prism, 36 sharp and clear beam effect
generated by double-prism combination.
0-100% Linear dimmer adjustment
Frost Filter, Electronic Focus, High speed shake effect
Wide Screen LCD display interface in both Chinese
and English
Control By 4 Modes: DMX 512, Master/Salve, Sound
activity and workauto
Device locking PAN and TILT mechanisms for
transportation and maintenance.
IP 20 Protection and adjustable rainproof cover up to IP44
Dimensions: 450x340x520mm
N.W: 25kg
